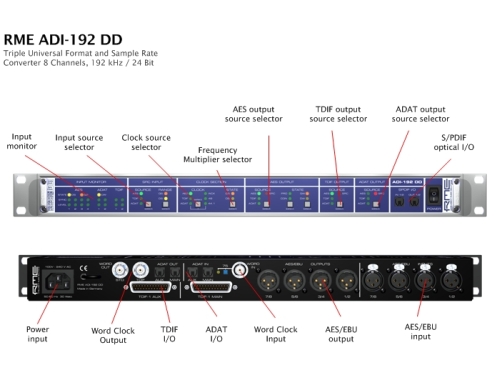

ADI-192 DD

The ADI-192 DD is the successor to the highly successful ADI-8 DD. The completely re-engineered device was designed to be the most powerful format and sample rate converter ever. Hence the ADI-192 DD not only features considerable improvements compared to the ADI-8 DD, but also adds a number of new and unique features. The unit consists of three 8-channel format converters with 24 bit audio resolution. The three output formats ADAT, TDIF and AES independently access the three input formats ADAT, TDIF and AES. Thanks to free selection of inputs, signals can be copied and distributed between all connected devices - without the need to change any cables. Four XLR AES/EBU inputs and outputs each, and two ADAT and TDIF inputs and outputs allow full 8-channel operation even at 96 kHz / 24 bit. At 192 kHz, there are eight AES channels and four ADAT and TDIF channels. Switchable 24/192 kHz sample rate converters allow 8-channel sample rate conversion and clock decoupling of the highest quality.
Due to the unlimited input selection, the unit not only transfers data to the same output format. For example it can be operated as quad AES/EBU sample rate converter.
48 LEDs clearly display the current status of the incoming and outgoing signals and the processing performed within the unit. The SyncCheck technology known from other RME devices indicates whether the input signal is locked and whether all inputs are sychronized. The AES output signal can be given a consumer or professional status. The first AES output (channels 1/2) is also available as optical TOSLINK.
Professionals will love the fact that the ADI-192 DD supports Double Wire, Quad Wire, S/MUX and S/MUX4, making it compatible to all methods of increasing sample rates by sample multiplexing on all platforms. The unit can also convert between these formats, even along with SRC. If more than 8 channels are required, several units can be cascaded and synchronized sample-accurately by word clock.
The ADI-192 DD also features an automatic distribution mode. If only one of the four AES inputs is used, the device will copy these two channels to the other three AES outputs.
RME's SteadyClock™ guarantees excellent clock quality in every situation. Due to the highly efficient jitter reduction, any clock signal can be improved and refreshed, and subsequently be used as reference clock at the word clock output. Intelligent Clock Control (ICC) will retain the last valid sample frequency in case of a loss of the input signal. All settings are retained when the device is switched off.

Input AES/EBU: 4 x XLR, transformer balanced, highly sensitive input stage (< 0.3 Vpp), SPDIF compatible, max. 192 kHz Single Wire
Output AES/EBU: 4 x XLR, transformer balanced, 4.5 Vpp, max. 192 kHz Single Wire
Input ADAT optical: 2 x TOSLINK, 24 bit, Bitclock PLL
Output ADAT optical: 2 x TOSLINK, 24 bit
Input/Output TDIF: 2 x D-type 25 pin, 24 bit
Input/Output SPDIF front: 2 x TOSLINK, 24 bit, max. 192 kHz
Input word clock: BNC, Signal Adaptation Circuit (functional from 1.2 Vpp)
Output word clock: BNC, low impedance driver stage, 4 Vpp into 75 Ohms, short-circuit-proof
Sync sources: Internal, ADAT optical in, AES/EBU in, TDIF in, word clock in
Varipitch: by input signal or word clock
Sample frequencies: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz, variable (sync/word clock)
Sample rate range: AES, word clock: 28 kHz-204 kHz, ADAT/TDIF 30 kHz - 54 kHz
Jitter: Internal clock < 1 ns, external clocks < 1 ns
Jitter sensitivity: all PLLs operate error-free even at 100 ns
Jitter suppression: >30 dB (2.4 kHz)
SRC dynamic ratio: 140 dB RMS unweighted, 143 dBA
SRC THD+N: < -140 dB
Sample rate ratio: max. 7:1 / 1:7
Power supply: Internal switching mode PS, 100V - 240V AC, 20 Watt
Dimensions: (WxHxD) 483 x 44 x 200 mm
Warranty: 2 years

Naša cijena: 12643,33 kn
Bez PDV-a: 10114,66 kn
