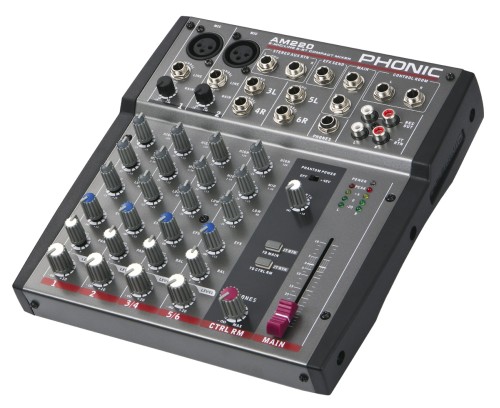

2-Mic/Line 2-Stereo Input Compact Mixer

The AM Series Mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

Feature

    * Audiophile-quality & ultra low noise
    * Two balanced Mic/Line inputs with 3-band EQ
    * Two stereo inputs with 3-band EQ
    * One stereo AUX return
    * Post-fader EFX send on every input
    * Global +48V phantom power
    * Peak and VU Metering
    * Peak indicators on each mono input channel
    * 2T RTN assignable individually to Main or Control room
    * Stereo EFX send cue for ease of monitoring individual channel
    * Balanced master output with 60mm fader control

More info


Product Application:

    * Live Sound Live Sound
    * Recording Recording

Dimensions

Height: 233mm
Length: 190mm
Width: 56mm

Mixers

AUX/EFX Rtns: 1
AUX/EFX Sends: 1
Channel Strips: 4
EQ Bands: 3
Mic Preamps: 2
Mono Channels: 2
Stereo Channels: 2
