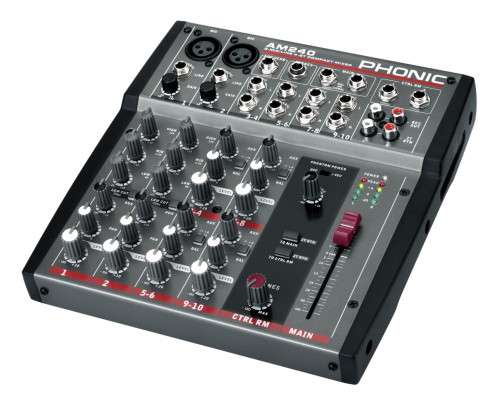

2-Mic/Line 4-Stereo Input Compact Mixer

The AM Series Mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

Features

    * Audiophile-quality & ultra low noise
    * Two balanced Mic/Line inputs with 3-band EQ and low cut
    * Four stereo inputs with +4/-10 select button
    * Post-fader AUX send on every input
    * Global +48V Phantom Power
    * CTRL RM and headphones outputs
    * Peak indicators on each mono input channel
    * Convenient RCA stereo I/O for MD or MP3 players
    * Stereo EFX send cue for better monitoring individual channel
    * Balanced master output with 60mm fader control

More info

Product Application:

    * Live Sound Live Sound

Dimensions

Height: 233mm
Length: 190mm
Width: 56mm

Mixers

AUX/EFX Sends: 1
Channel Strips: 6
EQ Bands: 3
Mic Preamps: 2
Mono Channels: 2
Stereo Channels: 4
