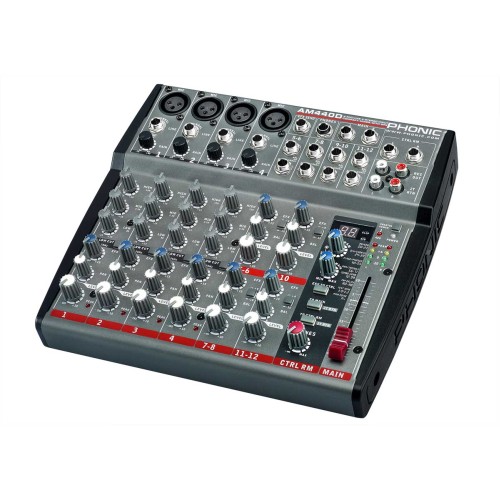

4-Mic/Line 4-Stereo Input Compact Mixer with DFX

The AM Series Mixers are compact and versatile with anywhere between 5 and 24 mono Mic/Line and stereo inputs. Ultra low noise pre-amps ensure high quality sound when used in project studios or sound reinforcement. Low-cut filters on mono channels eliminate unwanted sounds like stage rumble, P-pops, wind noise and low frequency recording studio room resonances. The multi-band EQ on mono channels gives you total control over your mix. The AM series also makes monitoring the mix easy with its dual multi-segment LED level meters and high volume headphone outputs.

Features

    * Audiophile-Quality & ultra low noise
    * 4 mono mic/line channels
    * 4 stereo channels
    * 32/40-bit digital stereo multi-effect processor with 100 programs + tap delay
    * AUX sends on each channel
    * 75Hz low-cut filter on mono channel
    * 3-band EQ on each channel
    * +48V phantom power on mic channels
    * Control Room/Phones source matrix for maximum monitor flexibility
    * EFX/AUX send cue for monitoring individual channel
    * Balanced main outputs with 60mm fader

More info

Product Application:

    * Live Sound

Dimensions

Height: 55mm
Length: 255mm
Width: 242mm

Mixers

AUX/EFX Sends: 1
Channel Strips: 8
DFX Processors: 100
EQ Bands: 3
Mic Preamps: 4
Mono Channels: 4
Stereo Channels: 4
