16-Mic/Line 4-Stereo Input Mixing Console with DFX

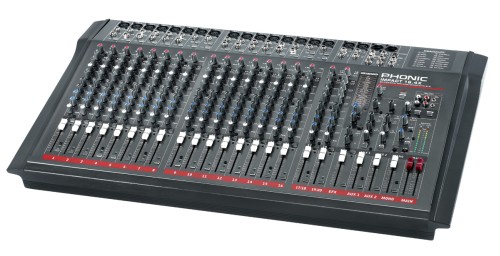

The Impact 16.4X is an easy-to-use mixing console that provides all the features you need for the project studio and live sound reinforcement. It has 18 ultra-quiet Mic preamps with high headroom and phantom power, and two stereo line channels. All mono channels feature inserts and low-cut switches. A 3-band EQ with swept-mid on mono channels and 4-band EQ on stereo channels gives you greater control over your mix. Four Aux sends and two stereo Aux returns can be used to connect a variety of outboard Signal Processors or to create special mixes to send to the performers' monitor Speakers. An onboard 24-bit stereo digital effects processor features 16 programs plus one main parameter control, tap control and foot switch jacks. Output is through XLR or 1/4" phone jacks and is selectable as stereo or mono output, with mono doubling as a subwoofer output. The added feature of mini stereo input/output makes this Mixer perfect for anyone connecting MP3, MD or computer audio or recording devices. The Impact 16.4X is ideal for houses of worship, small to medium-sized halls and project studios.

Features

    * Audiophile quality & ultra low noise
    * 18 Mic preamps
    * Mono channels have 3-band EQ with swept mid-range, 75Hz (18 dB/octave) low-cut filter, inserts and phantom power
    * Two stereo channels with 4-band EQ
    * 4 AUX sends, AUX 1 & 2 with XLR and 1/4" phone output jacks
    * 24-bit digital stereo multi-effect processor with 16 programs plus one main parameter control, tap control and foot switch jacks
    * 2 stereo AUX returns with effect to monitor
    * PAD on 4 mono channels to handle difficult signals
    * Polarity reverse switch on two channels
    * Main Stereo and Mono output with XLR and 1/4" phone jacks
    * Mono output with variable low pass filter for subwoofer
    * Tape input can be routed to AUX 1 and AUX 2
    * Record output with trim control for level matching
    * Mini stereo I/O for MD, MP3 player/recorder
    * Built-in switching power supply with universal connector, 100-240VAC, 50/60Hz

More info


Product Application:

    * Live Sound Live Sound
    * Mobile PA Mobile PA

Dimensions

Height: 437mm
Length: 774mm
Width: 112mm

Mixers

AUX/EFX Rtns: 2
AUX/EFX Sends: 2
Channel Inserts: 12
Channel Strips: 18
DFX Processors: 100
EQ Bands: 3
Mic Preamps: 18
Mono Channels: 16
Stereo Channels: 2
