RME

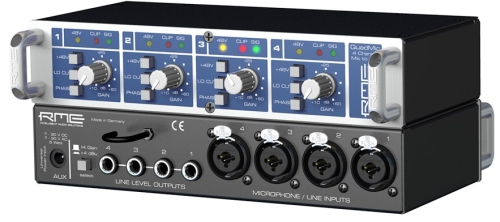

QuadMic II



Excellent signal/noise ratio, lowest harmonic distortions and wide gain range make the QuadMic a first choice for superior studio recordings.

Each of the 4 channels features balanced microphone and line inputs with Neutrik XLR/TRS combo jacks, switchable 48V phantom power, phase reversal and a low cut filter.

All channels are also equipped with LEDs for signal presence, clip state, and activated phantom power. The input amplification can be set from 6 to 60 dB. The balanced line level output signals are provided on the rear of the unit as four 6.3 mm (1/4") TRS jacks.

A maximum balanced and unbalanced output level of +21 dBu makes the QuadMic fully compatible to RME's converters and interface series having analog inputs.

The QuadMic complements any RME system with line inputs by adding external microphone inputs. Since the unit runs on supply voltages from 9 to 18V DC, it can operate on virtually any power source available, including batteries and rechargeable batteries


Tech Specs

Power supply: Operates with voltages ranging from 9-18V DC

Operation with practically any DC power source, including (rechargeable) batteries

High-quality switching power supply included, for worldwide operation at 100-240 Volt

Max. input level XLR: +15 dBu

Max. input level TRS: +21 dBu

Max. output level: +21 dBu

SNR: 129 dB EIN @ 150 Ohm

THD: < 0.0005% @ 30 dB Gain
