WHARFEDALE PRO

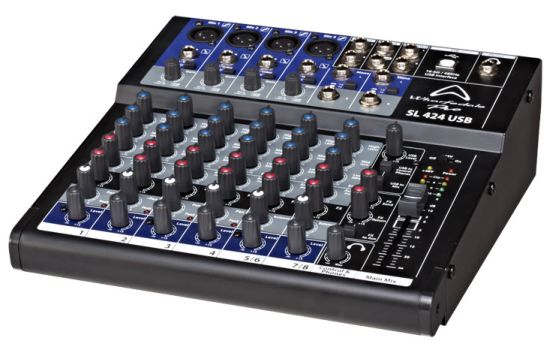

SL 424 USB





Designed to cater for a wide range of mid format mixing duties, the SL 424 includes many features suited to both live sound and home studio applications.

The studio quality class-compliant 2-input 2-output 16-bit/48kHz USB interface is great for live and home recording.

Studio grade microphone preamps are used throughout and have balanced XLR inputs, with all channels also offering balanced/unbalanced TRS line level connectivity.

An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels.

SPECIFICATIONS
MODEL SL424USB
FREQUENCY RESPONSE 20Hz~20kHz ±2dB
THD+N <0.025% @ + 14dBu ±0.5dBu
Maximum Input Level Mic +4dBu ±1dBu; Channel Line +21dBu ±1dBu; Stereo Line +21dBu ±1dBu; AUX Return In +21dBu ±1dBu
AC Power Options AC100V-240V~ 50/60Hz
Dimensions (HxWxD) 76mm x 248mm x 262mm / 3" x 9.8" x 10.3"
Weight 2.7kg / 5.95lbs
MONO INPUT CHANNEL GAIN 50dB Variable MIC (0~ -50dB) Line (-20dB~ +30dB)
LEVEL METERS 12 Segment LEDx2 (Output of +4dBu = 0dBu) Main L/R
Input Channel EQ High (±10dB) ±1.5dB 12kHz Shelving; Mid (±10dB) ±1.5dB 1kHz Shelving; Low (±10dB) ±1.5dB 80Hz Shelving
Maximum Balanced Output Main XLR Balanced Out +26.5dBu ±1dBu
Level (1%T.H.D. at 1KHz ) Main ?" Jack Balanced Out +26.5dBu ±1dBu
Maximum Unbalanced Main XLR Unbalanced Out +21dBu ±1dBu
Output Level (1%T.H.D. at1KHz ) Main ?" Jack Unbalanced Out +21dBu ±1dBu; Headphone Output 150mw ±5mw @ 32ohms
Hum and Noise 20Hz-20KHz -127dBu ±5dBu Mic Pre Equivalent Input Noise
(150R) -85dBu ±5dBu Residual Noise
S/N 78dB ±5dB @ Fader Max
FFT -62dBv ±5dBv @ Gain Fader Max
CMRR 62dB ±5dB @ 1KHz
Impedances Mic: Balanced 6KΩ, Unbalanced 3KΩ ±200Ω; Line: Balanced 44KΩ, Unbalanced 22KΩ ±2KΩ; AUX Return: Balanced 20KΩ, Unbalanced 10KΩ ±2KΩ; All Other Unbalanced Outputs: 100Ω, Balanced Outputs: 50ohms
Effect Out 16x Effects: (1)Hall1 (2)Hall2 (3)Room1 (4)Room2 (5)Room3(6)Platereverb1 (7)Platereverb2 (8)Platereverb3 (9)Chorus(10)Flange (11)Delay1 (12)Delay2 (13)Chorus/Room1(14)Chorus/Room2 (15)Bypass (16)Rotaryspeaker
